| Carbon-brush motor S699-80001 |
| OUTPUT:1W-50W(APPROX) |
| Automotive Products:Car Seat |
| Distinctive Features |
| 1:The drive motor is designed to be the compact sized motor for car seat applications. |
| 2:Memory optional. |

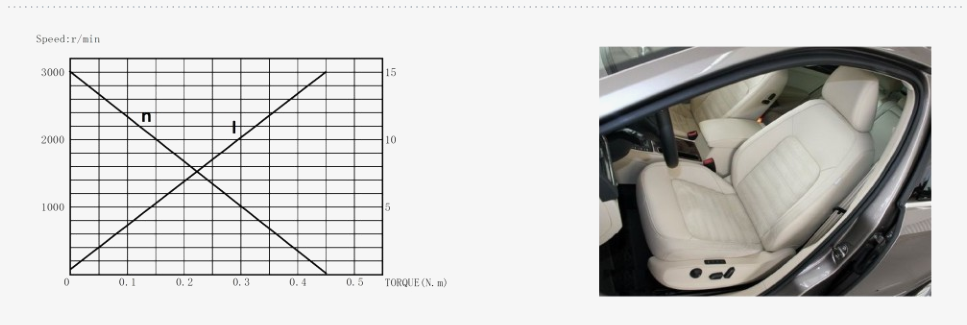

| Voltage | Noload | Onload | Stall | |||||
|
Operating range |
Nominal | Current | Speed | Torque | Current | Speed | Torque | Current |
| 9-15V | 12V | 2.5max | 3000 | 0.1 | 6max | 2400 | 0.45 | 15max |

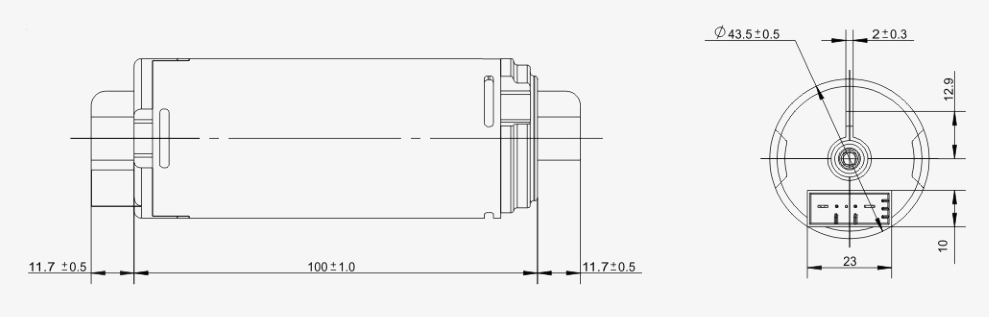

UNIT:mm
WEIGHT:485G(APPROX)

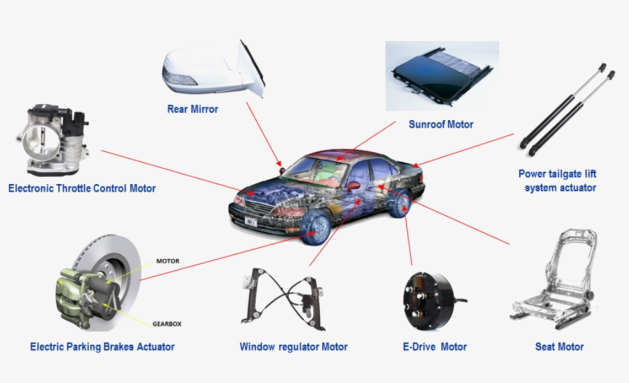

Products and Application
Ts 16949 Certication
