| Carbon-brush motor W299-80002 |
| OUTPUT:1W-50W(APPROX) |
| Automotive Products:Window lift |
| Distinctive Features |
| 1:The drive motor is designed to be the compact sized motor for car gate lift applications. |
| 2:This motor is designed wite water proof function. |
| 3:Optional output gear and connector. |
| 4:EMC solution is available. |

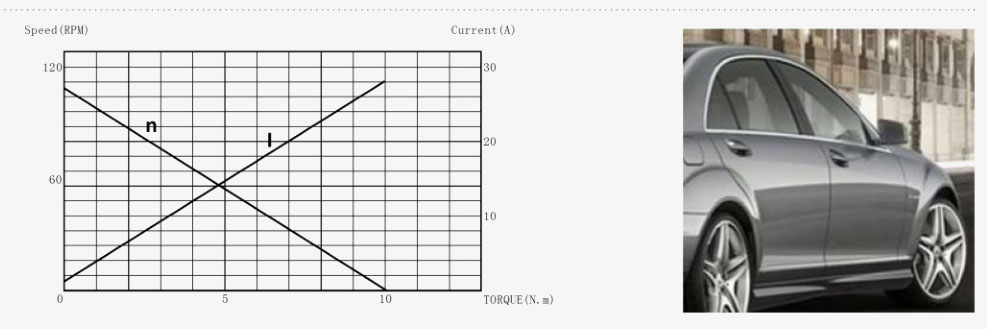

| Voltage | Noload | Onload | Stall | |||||
|
Operating range |
Nominal | Current | Speed | Torque | Current | Speed | Torque | Current |
| 9-15V | 12V | 2.5max | 95 | 3 | 13max | 65 | 9 | 28max |

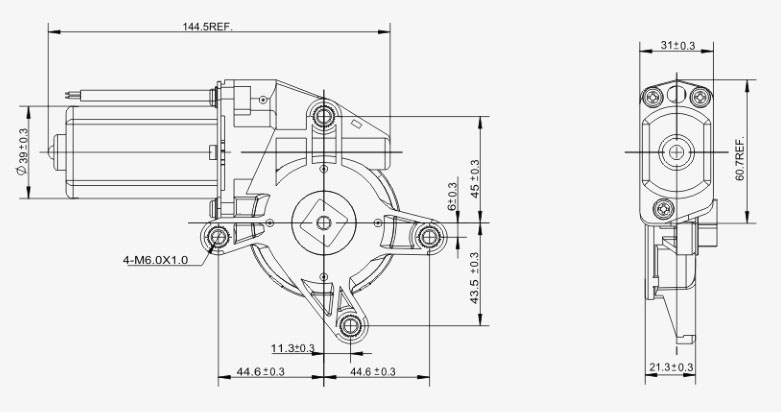

UNIT:mm
WEIGHT:440G(APPROX)
Products and Application
Ts 16949 Certication
